Light up your space!

Stadium 2

Outdoor lighting / Outdoor lighting

An innovation of Eltor's team is the new LED reflector STADIUM, a reflector specially designed to illuminate large indoor or outdoor areas and sports fields. Stadium LED floodlight is an innovative LED lighting that supports the latest TV broadcasting standards and offers outstanding light quality, a large selection of colour temperature (K), long service life and instantaneous on and off. In combination with computer lighting control system, DALI, lighting can be pre-set or customized at a specific time on the spot. Power supply electronic 230-240V 50Hz mounted on the housing. When installing several reflectors in a group, the electronic power supply is located in a separate power supply unit. The reflector housing is made of extruded oxidized aluminum, 5mm thick tempered glass and silicone protective seals. The reflector comes with a galvanized bracket with the possibility of vertical adjustment of +/- 40 ° and horizontal adjustment of +/- 20 °. Manufactured in accordance with EN / IEC 60598-1: 2.

Usage

Technical Characteristics

Light source
LED
Housing
Pressed, oxidized aluminum, hardened transparent 4 mm thick glass, silicone seal
Reflector
Matte satin symmetrical aluminium reflector
Standard colors
Black
Connecting luminaire
Through removing protective cover, connection clamps are available

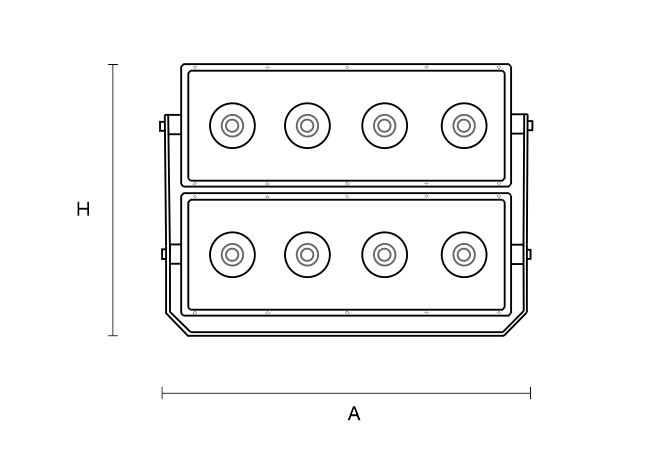

Dimensions Technical sheets

Graph Illumination
